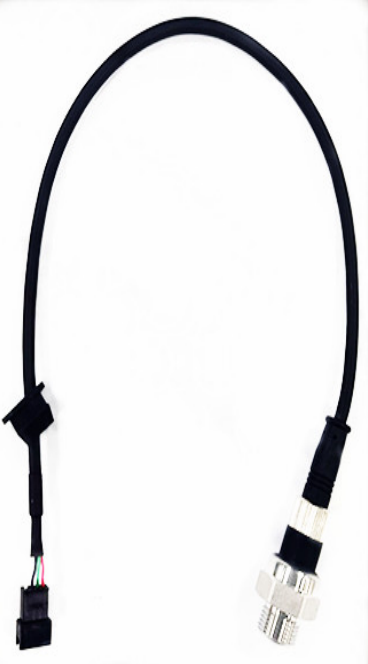

Voltage type sensor
ZLW-U-1M-3
Technical parameter
|
Type of signal |
Voltage pattern |
|---|---|
|
Type of sensor |
Pressure & Temperature |
|
Measurement range |
0～1MPa（0～10bar） |
|
Accuracy |
±1%FS |
|

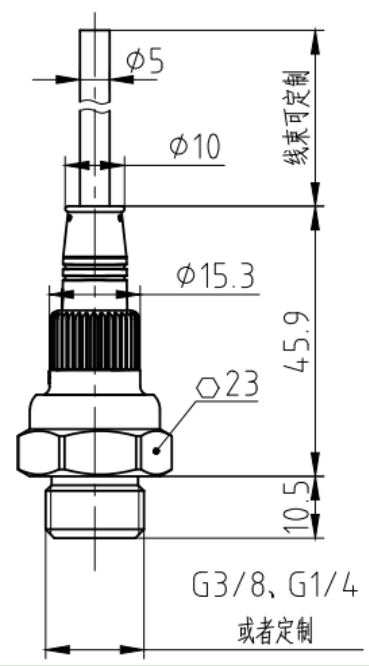

Threads for installation |
G3/8，Optional G1/4 and support for customization |
|
Wire harness connection method |
Threaded connection |
|
Supply Voltage |
3～5.5V DC |
|
output current |
< 15 mA |
|
Medium of use |
Clean gas or liquid compatible with 304 stainless steel and fluorine/silicon rubber |
|
Operating temperature |
0℃～85℃ |
|
Overload pressure |
2MPa |
|
Insulation resistance |
500V DC＞100MΩ |
|
Insulation strength |
1800V AC, 50Hz, lasting 3S, leakage current less than 1mA |
|
Level of protection |
IP65 |
